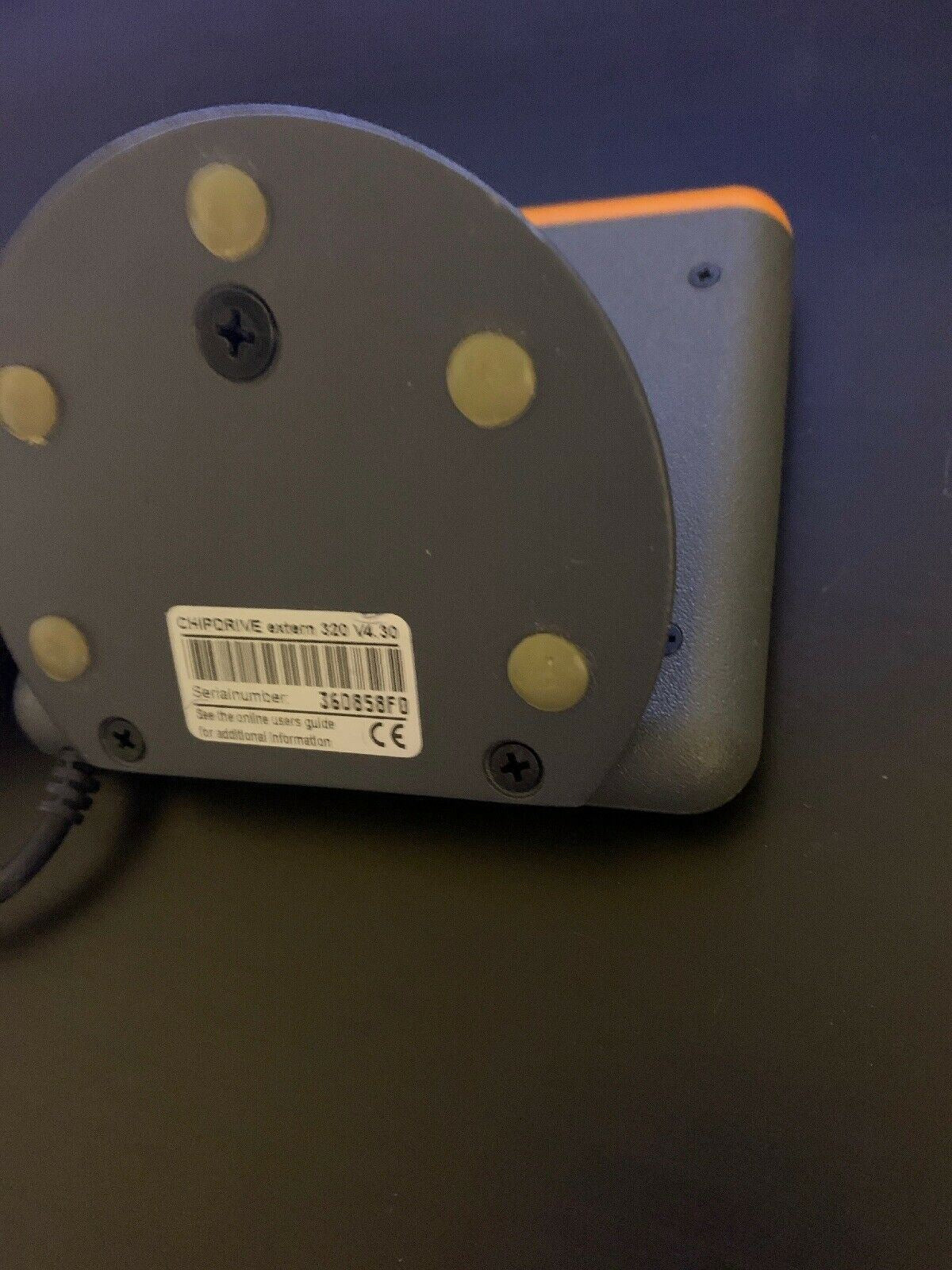

Chipdrive Extern 320 V4.30 Smart Card Reader Towitoko Electronics Serial Port
Chipdrive Extern 320 V4.30 Smart Card Reader Towitoko Electronics Serial Port
Stock Available: 1
Couldn't load pickup availability
Chipdrive Extern 320 V4.30 Smart Card Reader Towitoko Electronics . Condition is Used.
| EMI compatibility | CE 89/336 | |
| Temperature range | -10 to +50 C | |
| Card interface life | 200,000 mating cycles | |
| Contact material | gold plated brass | |
| Card frequency | 3.57 MHz | |
| Card current supply | 0 to 55 mA | |
| Interface | PC, serial connection RS232, V.24 | |
| Power supply | from serial port, buffered by maintenance-free NiMH battery |
|
| Display | three color status LED: red / yellow / green | |
| Dimensions | 70 x 100 x 70 mm (LWH) | |
| Body color | RAL 7024 (dark gray), RAL 1028 (orange - yellow) | |
| Protocols | T=0, T=1, 2-Wire, 3-Wire, I2C, over 40 memory card types supported |
|
| Standards | ISO 7816-3 ff., PC/SC, OCF, EMV3.0, GSM11.11, FCC, UL, CE | |
| Printable area | 69 x 79 mm (1/0 to 2/0 colors) | |
| Connection cable | 120 cm, 9 pol. SUB-D, black | |
| Interface speed | T=0: 4800 .. 38400 Baud (PTS) T=1: 4800 .. 115200 Baud (PTS) Sync. protocols: 4800 .. 115200 |
|
| CPU type | 4 MHz Microchip controller | |
