C Media CMI8738/PCI-SX Sound Card with 15-pin Game Port
C Media CMI8738/PCI-SX Sound Card with 15-pin Game Port
Stock Available: 0
Couldn't load pickup availability

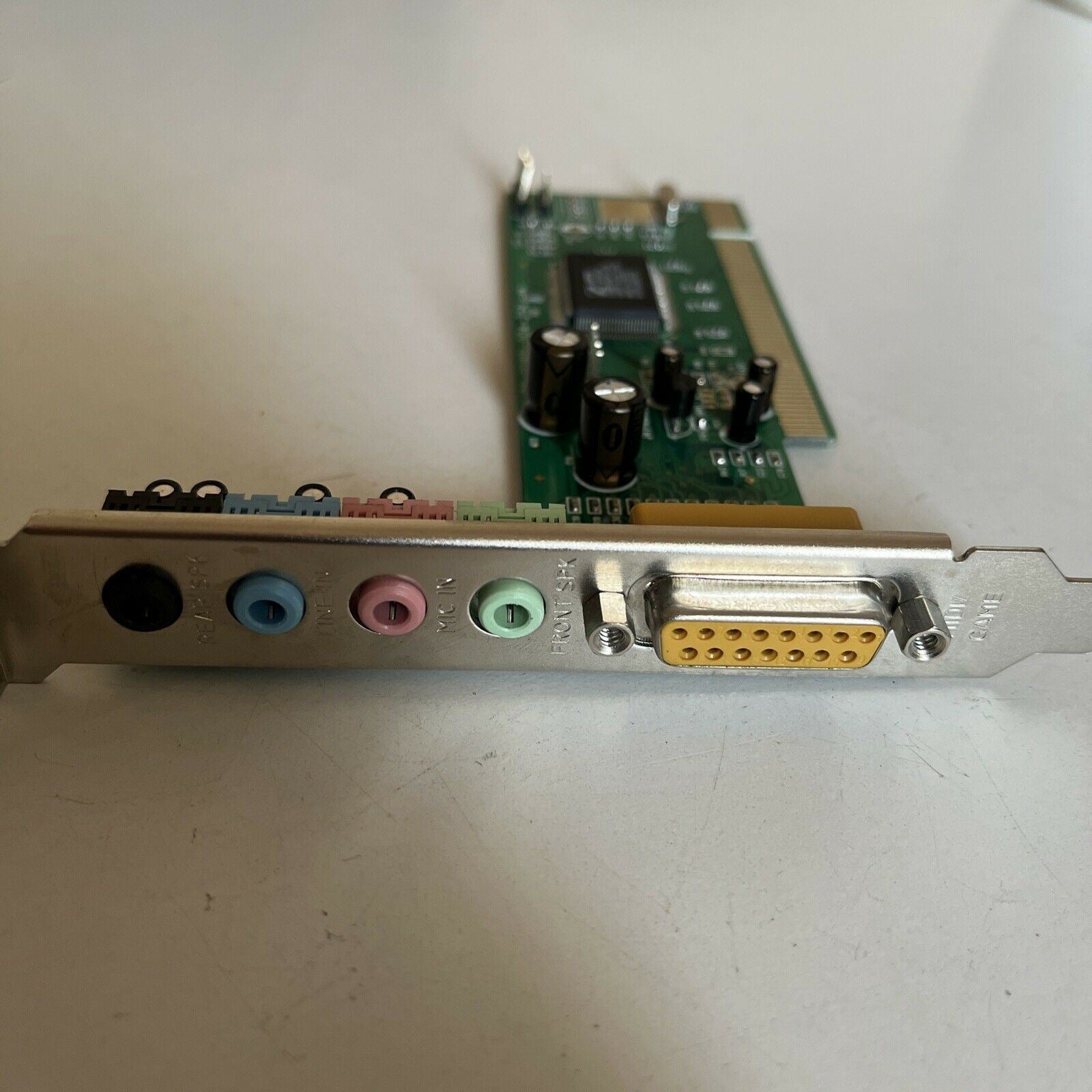

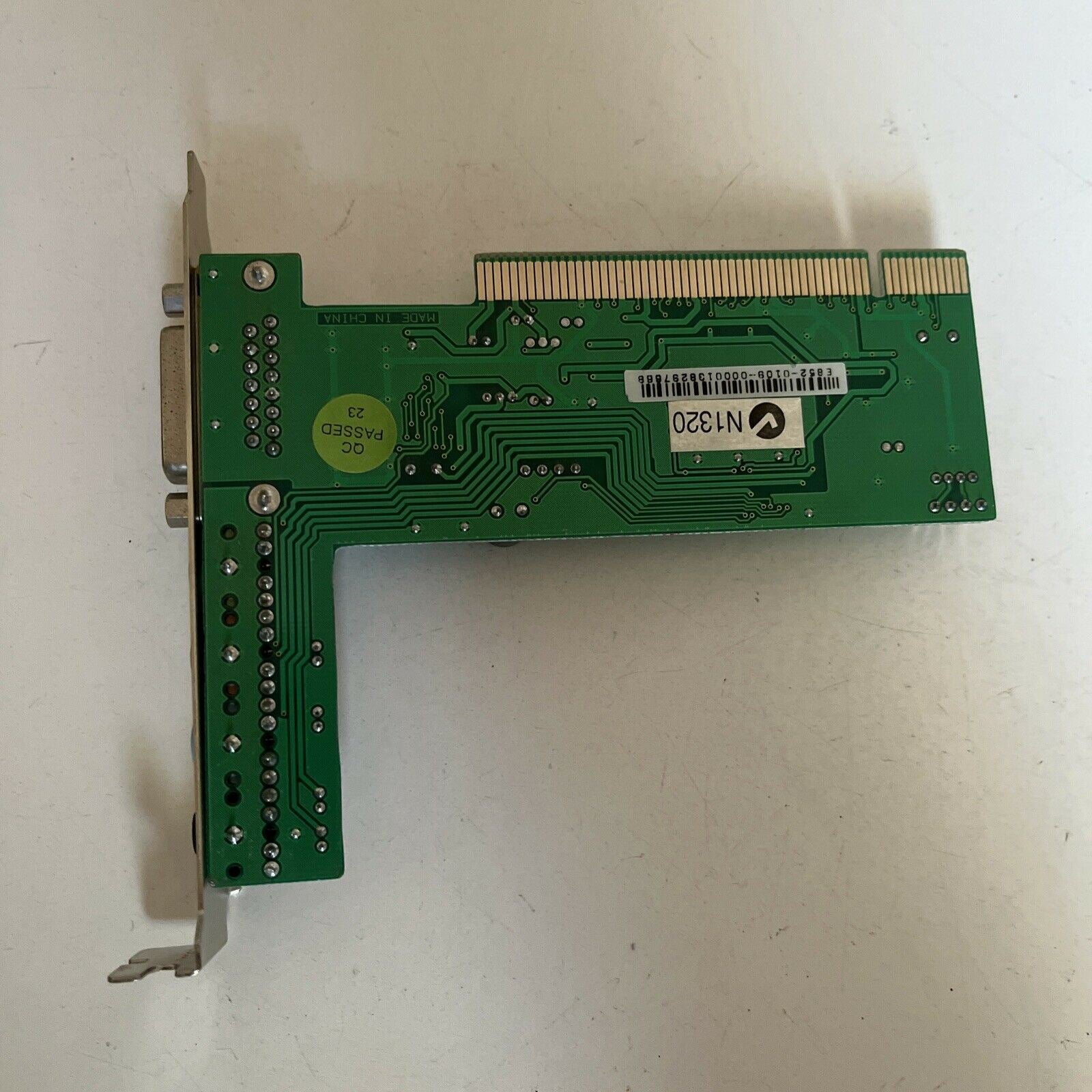

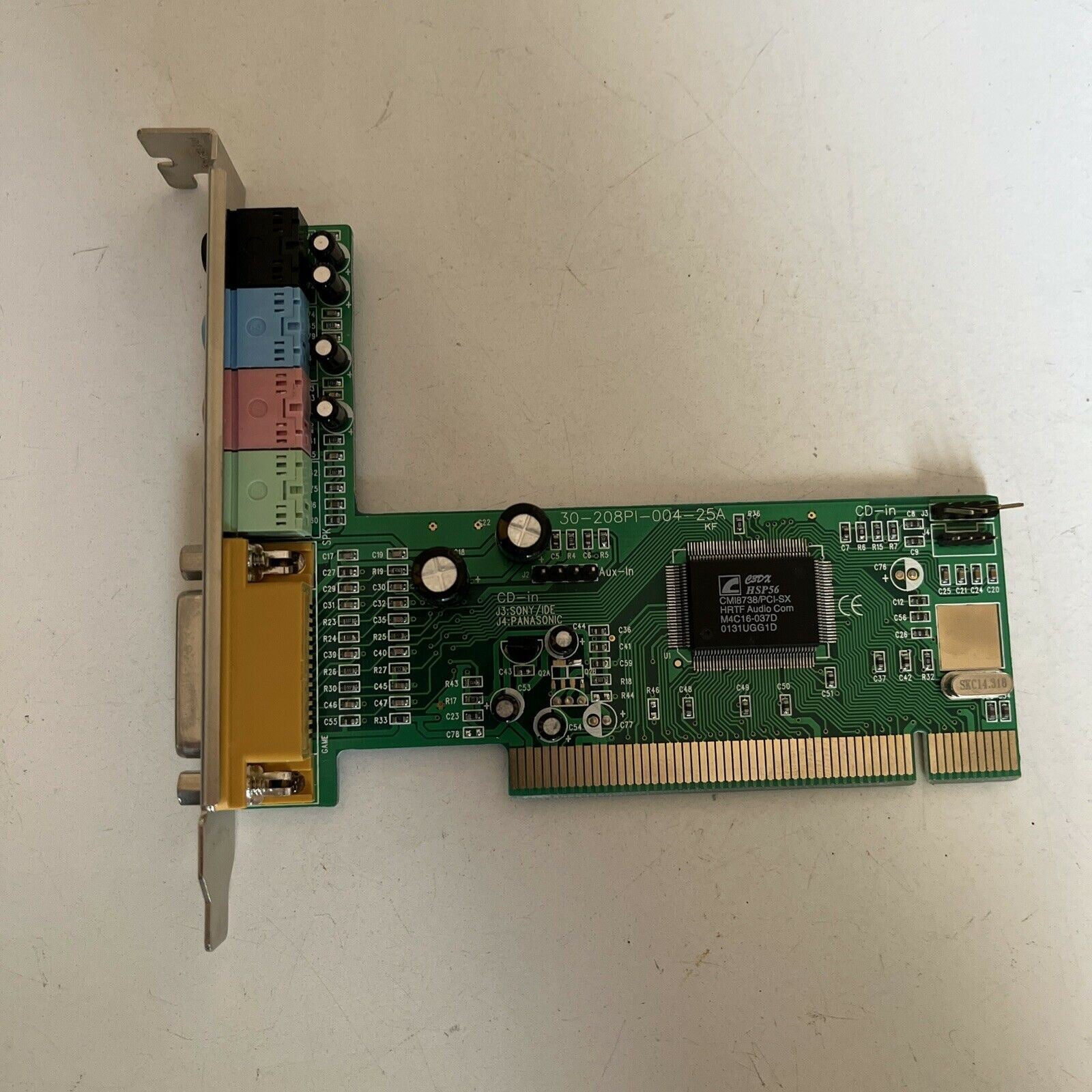

C Media CMI8738/PCI-SX Sound Card.
With high-speed PCI V2.1 bus controller and built-in codec, CMI8738 is a highly-integrated world-only single audio chip designed for PC add-in sound cards and motherboard audio. CMI8738 series chips have been the most widely adopted effective PCI audio chips in the world.
CMI-8738 supports the legacy audio – SBPRO, FM emulator, MIDI MPU-401 port. 8738-SX supports 4-channel 16-bit DACs to provide surround audio. 8738-LX or MX supports 6-channel DACs for 5.1 home theater environments and meet PC99 audio performance requirements. CMI8738-MX also provides S/PDIF digital audio interface I/O for 44.1KHz and 48KHz LPCM audio.
- 32-bit PCI 2.1 compatible bus master.
- 8738-LX/MX supports 6CH DAC 5.1 surround output for movies and 3D games.
- 8738-SX supports 4CH DAC surround output for movies and 3D games.
- 8738-MX provides additional digital interface S/PDIF IN/OUT (44.1K and 48KHz).
- Built-in 32ohm earphone buffer.
- Built-in 2CH 16bit ADC.
- Supports full-duplex 44.1K/48KHz sample rate playback and recording at 16bit.
- Supports analog mixer for Line-in, Mic-in, Aux, CD inputs.
- Built-in Microphone pre-amplifier (+20dB).
- MIDI MPU-401 port/ game port.
- Built-in ZV port.
- Legacy audio SBPRO compatible.
- External E2PROM interface for custom Sub-VID/PID.
- Digital power +3.3V, analog power +5V.
