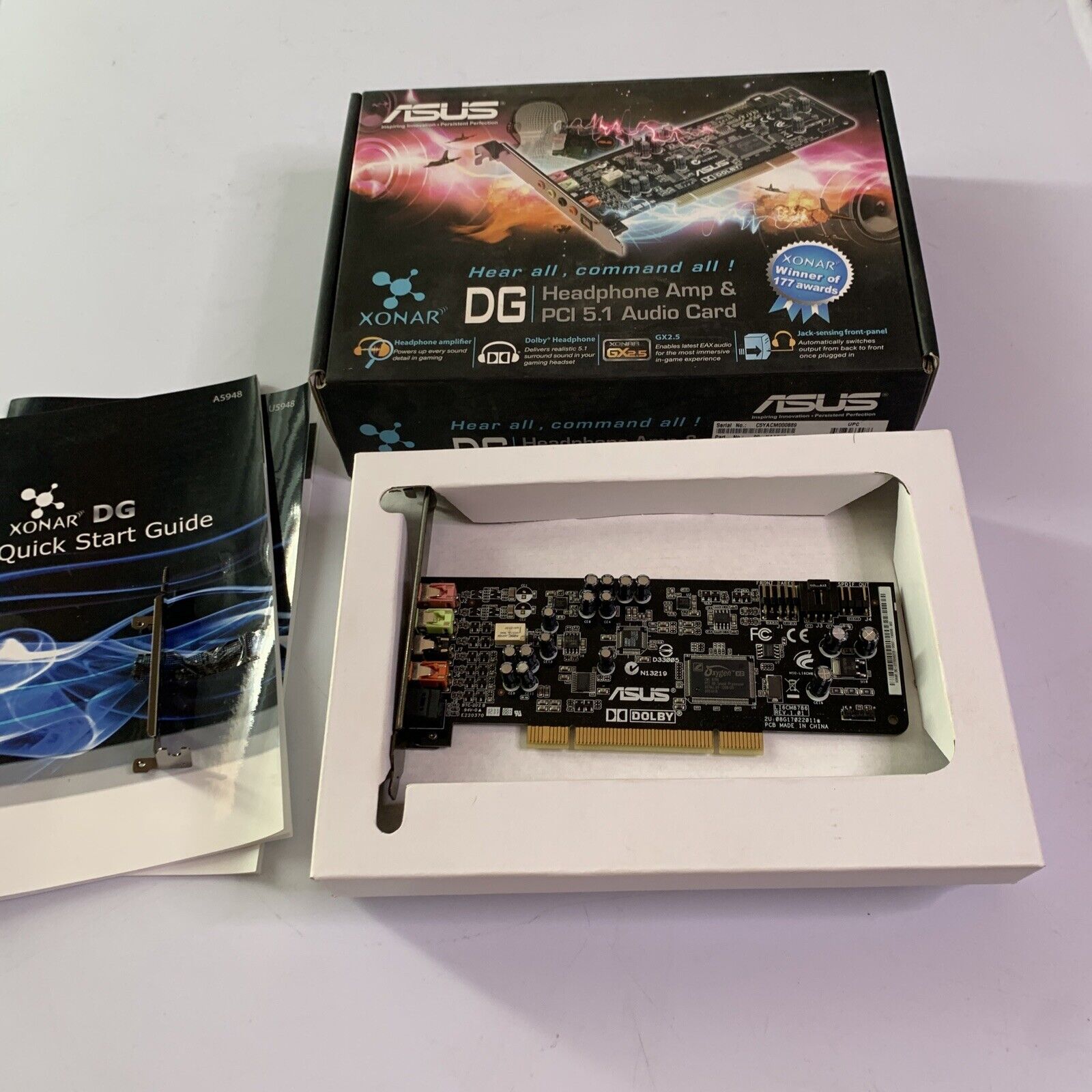

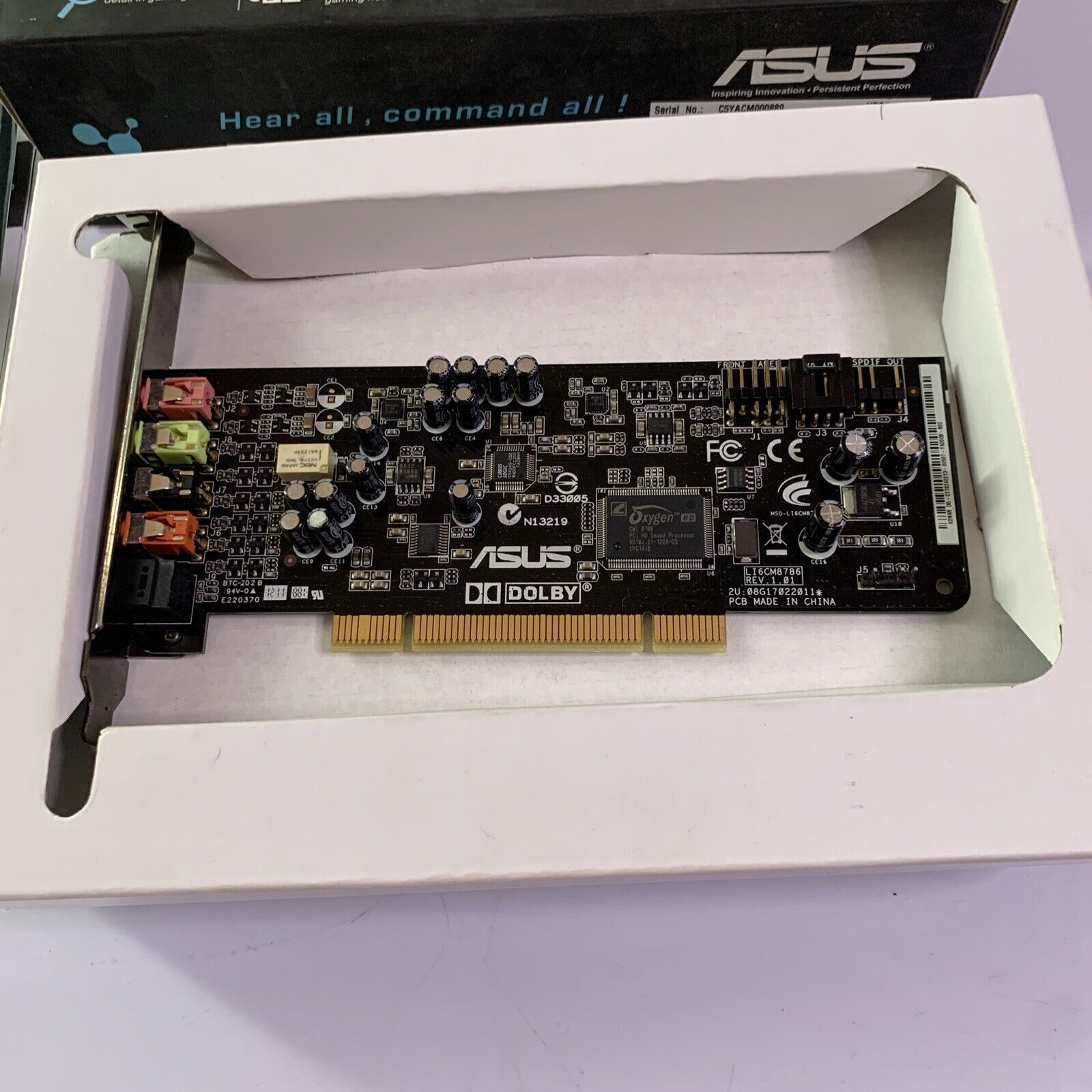

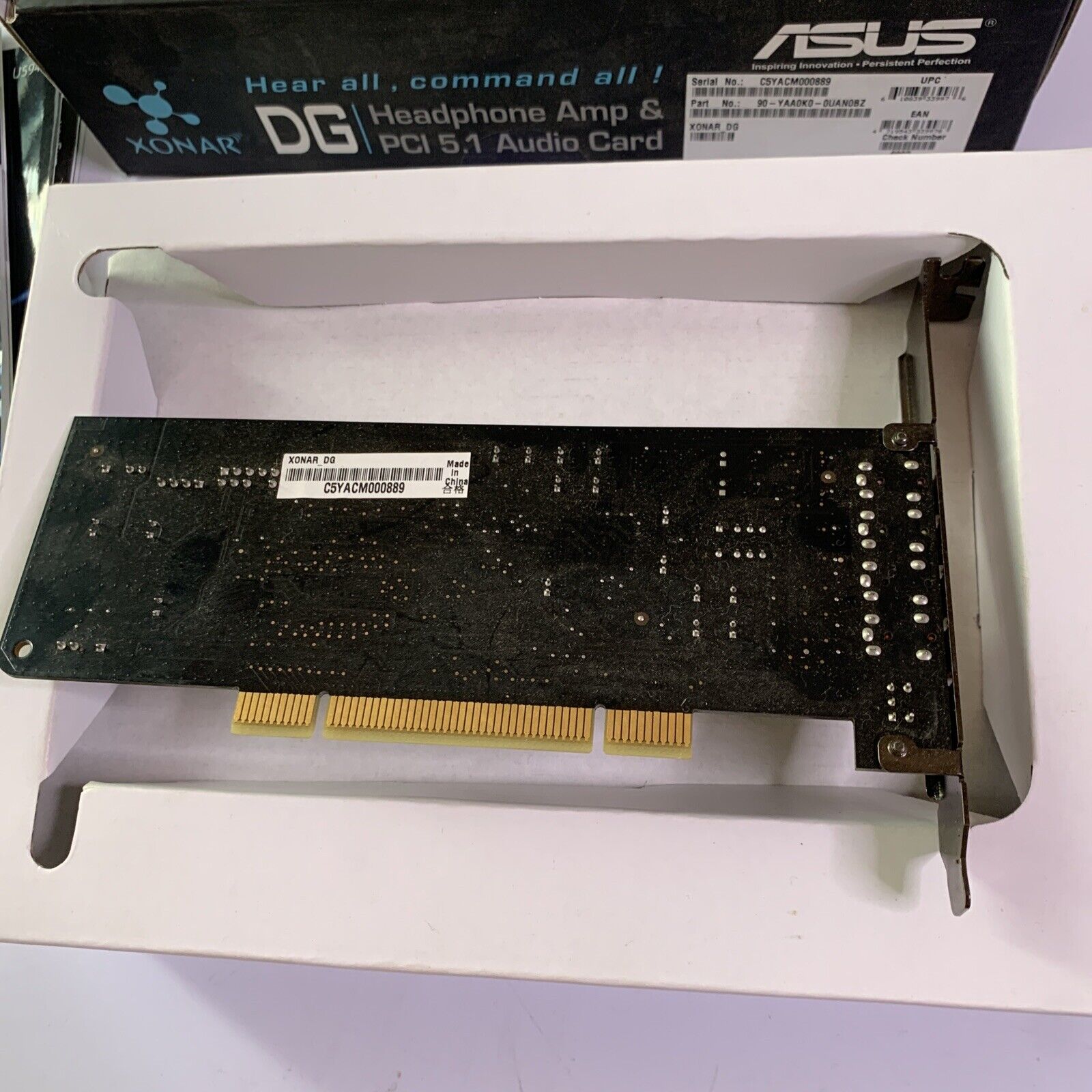

ASUS XONAR DG Headphone Amp & PCI 5.1 Audio Sound Card
ASUS XONAR DG Headphone Amp & PCI 5.1 Audio Sound Card
Stock Available: 0
Couldn't load pickup availability
In working order.
• Built-in amplifier for an optimal driving power for your headset
• Dolby® Headphone for an immersive 5.1 surround imaging
• G2.5 for realistic 3D audio effects
• Automatic jack-sensing front-panel output

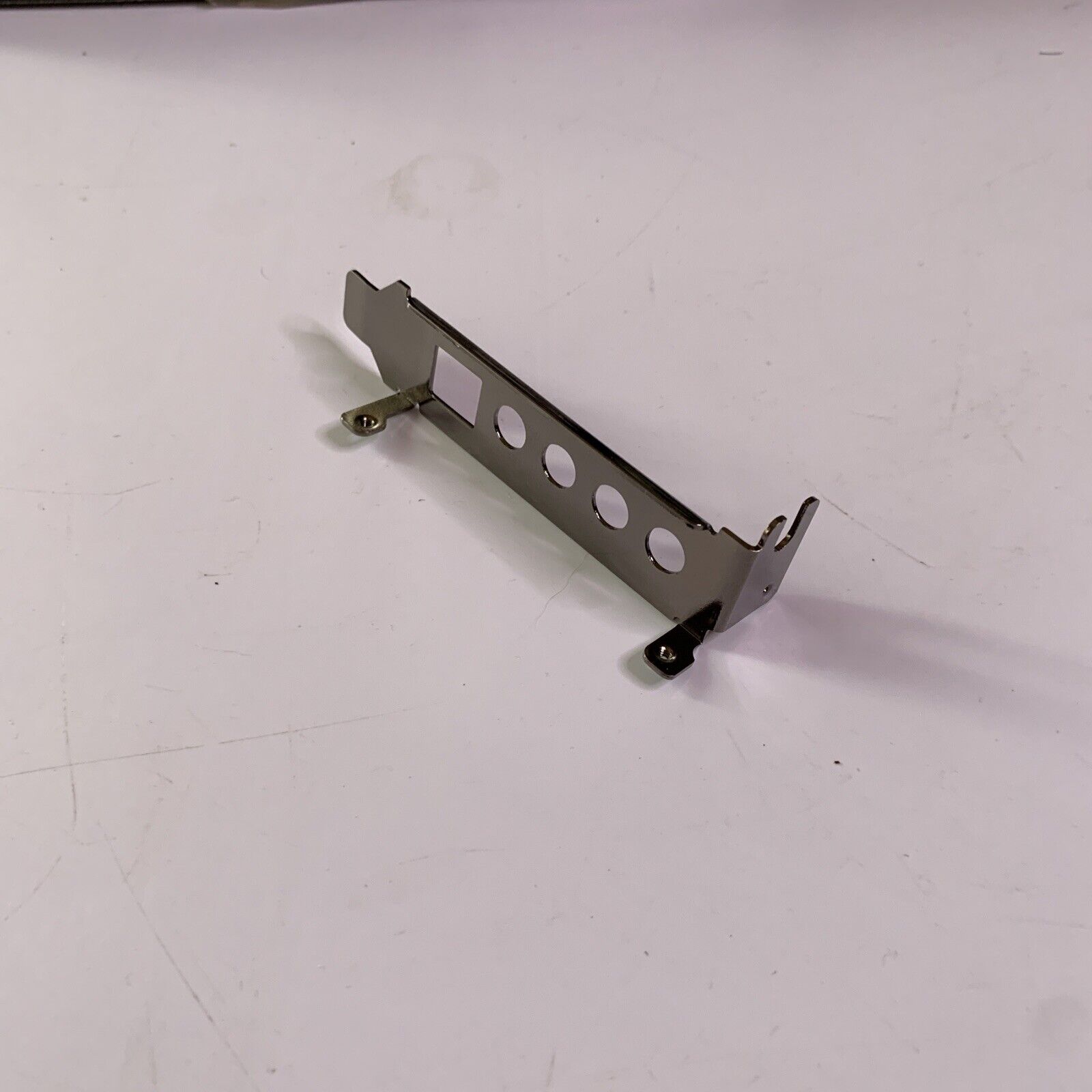

• Bundled low-profile bracket for mini chassis

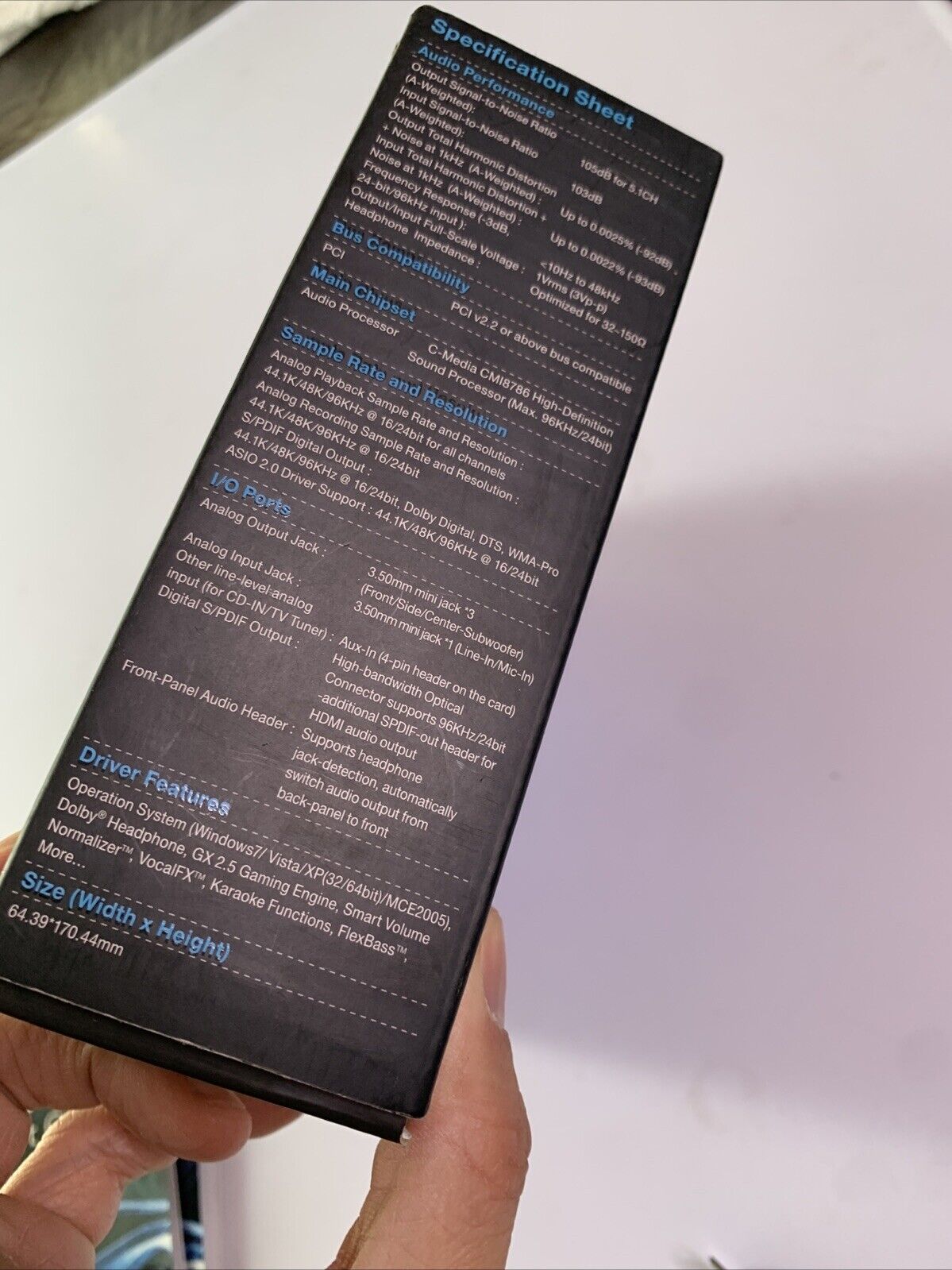

Specification Sheet
Audio Performance
Output Signal-to-Noise Ratio
(A-Weighted):
105d8 for 5.1CH
Input Signal-to-Noise Ratio
(A-Weighted):
103dB
Output Total Harmonic Distortion
+ Noise at 1kHz (A-Weighted) :
Up to 0.0025% (-92dB)
Input Total Harmonic Distortion +
Noise at 1kHz (A-Weighted) :
Up to 0.0022% (-93dB)
Frequency Response (-3dB,
24-bit/96kHz input):
<10Hz to 48kHz
Output/Input Full-Scale Voltage : 1Vrms (3Vp-p)
Headphone Impedance:
Optimized for 32-1500
•SOSS4950.000
Bus Compatibility
PCI
PCI v2.2 or above bus compatible
Main Chipset
Audio Processor
C-Media CMI8786 High-Definition
Sound Processor (Max. 96KHz/24bit)
Sample Rato and Resoltion
Analog Playback Sample Rate and Resolution:
44.1K/48K/96KHz @ 16/24bit for all channels
Analog Recording Sample Rate and Resolution :
44.1K/48K/96KHz @ 16/24bit
S/PDIF Digital Output :
44.1K/48K/96KHz @ 16/24bit, Dolby Digital, DTS, WMA-Pro
ASIO 2.0 Driver Support : 44.1K/48K/96KHz @ 16/24bit

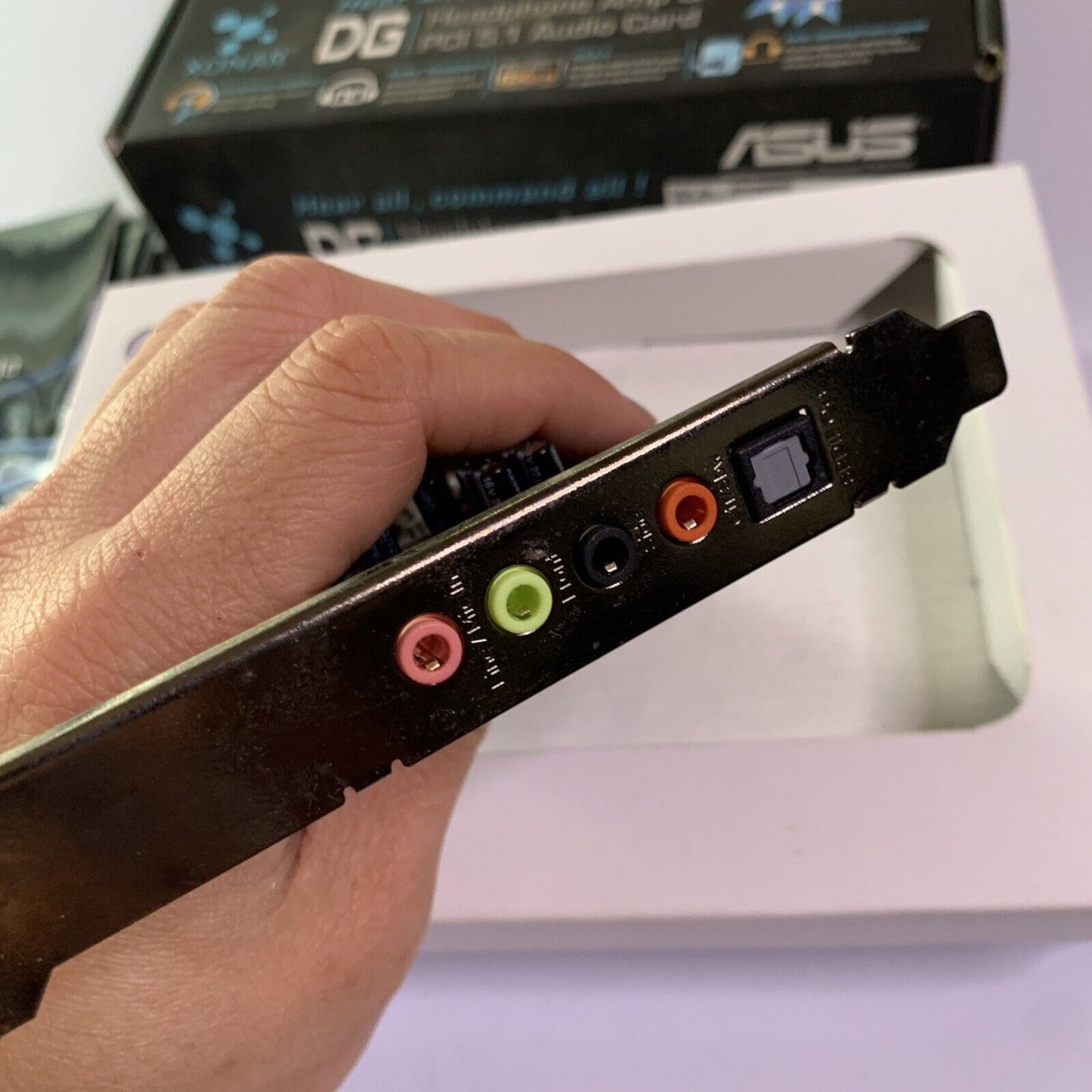

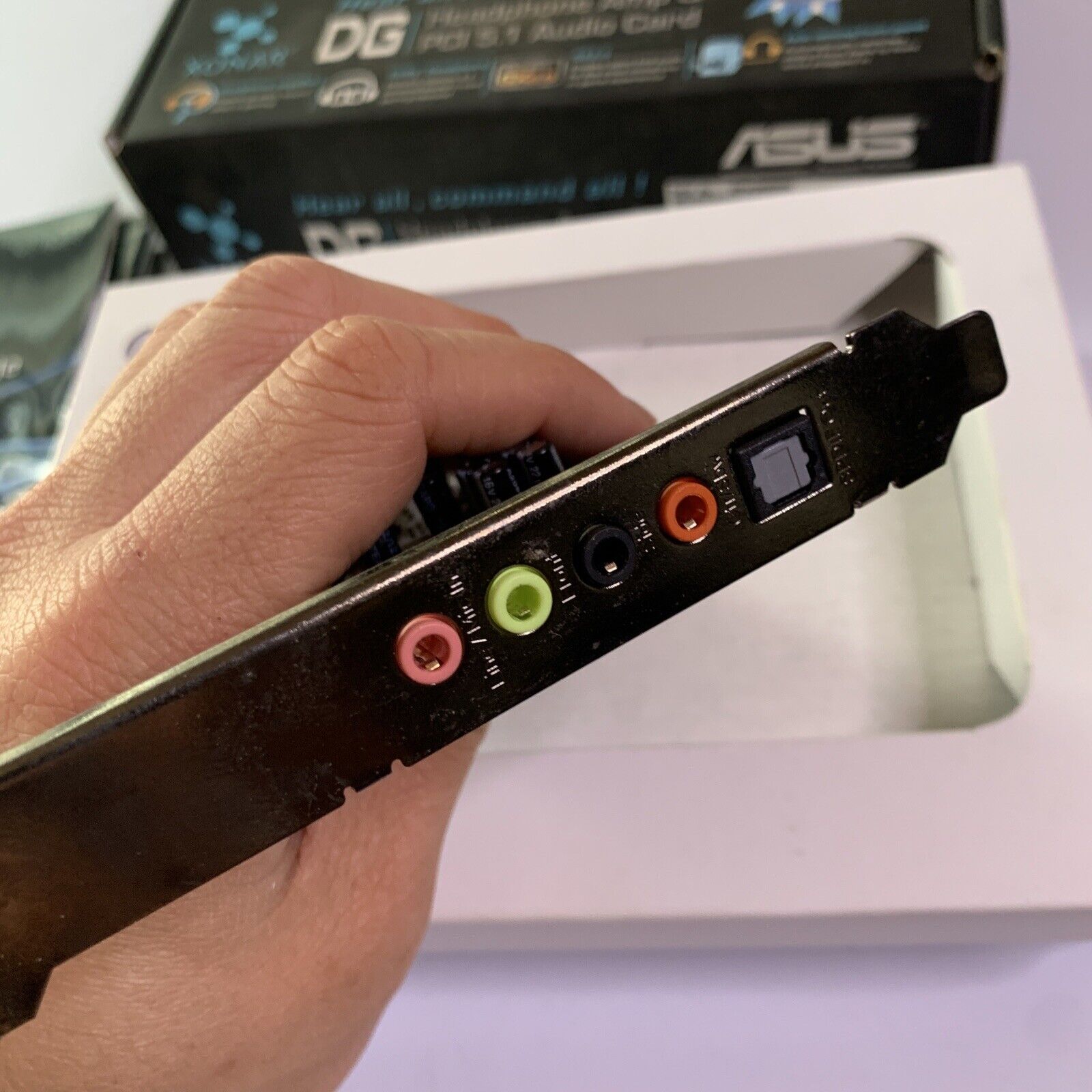

IO Ports
Analog Output Jack :
- - - -
3.50mm mini jack *3
(Front/Side/Center-Subwoofer)
Analog Input Jack :
3.50mm mini jack *1 (Line-In/Mic-In)
Other line-level analog
input (for CD-IN/TV Tuner) : Aux-In (4-pin header on the card)
Digital S/PDIF Output :
High-bandwidth Optical
Connector supports 96KHz/24bit
-additional SPDIF-out header for
HDMI audio output
Front-Panel Audio Header : Supports headphone
jack-detection, automatically switch audio output from back-panel to front
Bs8.24916.02e
